Customizing Per-Process Metrics in PMM

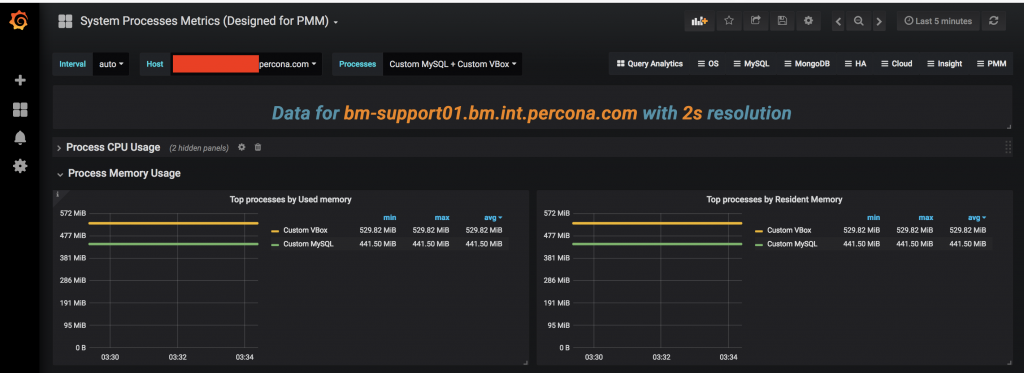

Process Memory Usage - a filtered graph in PMM

If you have set up per-process metrics in Percona Monitoring and Management, you may have found yourself in need of tuning it further to not only group processes together, but to display some of them in isolation. In this blogpost we will explore how to modify the rules for grouping processes, so that you can make the most out of this awesome PMM integration.

Let’s say you have followed the link above on how to set up the per-process metrics integration on PMM, and you have imported the dashboard to show these metrics. You will see something like the following:

PMM database and system monitoring and management software

This is an internal testing server we use, in which you can see a high number of VBoxHeadless (29) and mysqld (99) processes running. All the metrics in the dashboard will be grouped by the name of the command used. But, what if we want to see metrics for only one of these processes in isolation? As things stand, we will not be able to do so. It may not make sense to do so in a testing environment, but if you are running multiple mysqld processes (or mongos, postgres, etc) bound to different ports, you may want to see metrics for each of them separately.

Modifying the configuration file

Enter all.yaml!

In the process-exporter documentation on using a configuration file, we can see the following:

The general format of the -config.path YAML file is a top-level process_names section, containing a list of name matchers. […] A process may only belong to one group: even if multiple items would match, the first one listed in the file wins.

This means that even if we have two rules that would match a process, only the first one will be taken into account. This will allow us to both list processes by themselves, and not miss any non-grouped process. How? Let’s imagine we have the following processes running:

mysqld --port=1
mysqld --port=2
mysqld --port=3
mysqld --port=4

And we wanted to be able to tell apart the instances running in ports 1 and 2 from the other ones, we could use the following rules:

- name: "mysqld_port_1"
 - '.*mysqld.*port=1.*'
- name: "mysqld_port_2"
 - '.*mysqld.*port=2.*'
- name: "{{.Comm}}"
 - '.+'

In cmdline we will need the regular expression against which to match the process command running. In this case, we made use of the fact that they were using different ports, but any difference in the command strings can be used. The last rule is the one that will default to “anything else” (with the regular expression that matches anything).

The default rule at the end will make sure you don’t miss any other process, so unless you want only some processes metrics collected, you should always have a rule for it.

A real life working example of configuring per-process metrics

In case all these generic information didn’t make much sense, we will present a concrete example, hoping that it will make everything fit together nicely.

In this example we want to have the mysqld instance using the mysql_sandbox16679.sock socket isolated from all the others, and the VM with ID finishing in 97eafa2795da listed by their own. All other processes are to be grouped together by using the basename of the executable.

You can check the output from ps aux to see the full command used. For instance:

shell> ps aux | grep 97eafa2795da
agustin+ 27785  0.7 0.2 5619280 542536 ?      Sl Nov28 228:24 /usr/lib/virtualbox/VBoxHeadless --comment centos_node1_1543443575974_22181 --startvm a0151e29-35dd-4c14-8e37-97eafa2795da --vrde config

So, we can use the following regular expression for it (we use .* to match any string):


The same applies to the regular expression for the mysqld process.

The configuration file will end up looking like:

shell>  cat /etc/process-exporter/all.yaml
 - name: "Custom VBox"
   - '.*VBoxHeadless.*97eafa2795da.*'
 - name: "Custom MySQL"
   - '.*mysqld.*mysql_sandbox16679.sock.*'
 - name: "{{.Comm}}"
   - '.+'

Let’s restart the service, so that new changes apply, and we will check the graphs after five minutes, to see new changes. Note that you may have to reload the page for the changes to apply.

shell> systemctl restart process-exporter

After refreshing, we will see the new list of processes in the drop-down list:

A new list of processes in PMM after filtering

And after we select them, we will be able to see data for those processes in particular:

Thanks to the default configuration at the end, we are still capturing data from all the other mysqld processes. However, they will have their own group, as mentioned before:

System Processes Metrics graph in PMM



Modifying List of Collected Metrics on PMM Linux Exporter

Changing metrics collection with PMM for Linux

Changing metrics collection with PMM for LinuxDo you need to modify the metrics collected from Linux by Percona Monitoring and Management (PMM)? In this blog post we will see how to enable, disable, and update collected metrics on PMM’s linux:metrics exporter.

We will assume that the PMM client packages are installed, and they are configured already.

Using a custom list of metrics

Let’s now suppose we are not yet collecting any metrics on our desired client server, and we want to enable only the following: diskstats, meminfo, netdev and vmstat. We can use the following command:

pmm-admin add linux:metrics -- -collectors.enabled=diskstats,meminfo,netdev,vmstat

So, in order to enable or disable the functionality we want, we need to modify the collectors.enabled list accordingly. In the following online documentation page, we are able to find all collectors supported:


In this way, by adding or removing items from the collectors.enabled list, we can choose which functionality will be set in our PMM linux:metrics collectors.

Checking list of metrics used

We can use the ps aux command to check the collectors list that applies at any given time. Let’s see this in practical terms. After running the previous command, we should expect to see the following:

shell> ps aux | grep node_exporter
root     20450 3.2  0.0 1660248 15924 ?       Sl 13:48 0:13 /usr/local/percona/pmm-client/node_exporter -collectors.enabled=diskstats,filefd,filesystem,loadavg,meminfo,netdev,netstat,stat,time,uname,vmstat,meminfo_numa -web.listen-address= -web.auth-file=/usr/local/percona/pmm-client/pmm.yml -web.ssl-cert-file=/usr/local/percona/pmm-client/server.crt -web.ssl-key-file=/usr/local/percona/pmm-client/server.key -collectors.enabled=diskstats,meminfo,netdev,vmstat

Note: there is currently a bug where you will see duplicate entries when using custom collectors. We are tracking this under issue PMM-2857. For now, if you see two different lists on ps aux outputs, the one that applies is the last one (as seen above).

Updating the list of metrics

There is currently no way to enable (or disable) metrics dynamically (however, we are working on it). We will need to stop the collector, manually get and edit the metrics list, and re-add it with the updated collectors in place. For this, we will need to know the current list of metrics used from the ps aux outputs.

Continuing with the same example, suppose we are not happy with what netdev metrics offer, and we wish to disable them to avoid unnecessary overhead. Knowing the metrics list was:


We will need to run the following commands to have it removed from the collectors list:

pmm-admin stop linux:metrics
pmm-admin rm linux:metrics
pmm-admin add linux:metrics -- -collectors.enabled=diskstats,meminfo,vmstat

Links for reference

  • Passing options to exporter: here and here
  • Collector options for linux:metrics exporter: here
